A rigid smooth retaining wall of height 7 m with vertical backface retains saturated clay as backfill

Q. A rigid smooth retaining wall of height 7 m with vertical backface retains saturated clay as backfill. The saturated unit weight and undrained cohesion of the backfill are 17.2 kN/m3 and 20 kPa, respectively. The difference in the active lateral forces on the wall (in kN per meter length of wall, up to two decimal places), before and after the occurrence of tension cracks is

Ans: 45-49

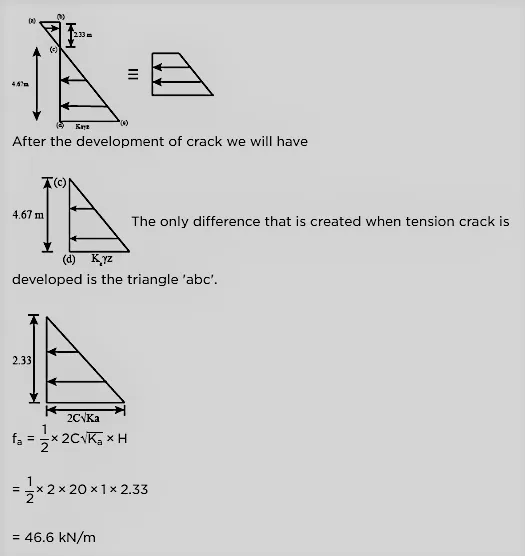

Sol:
