Q. A three-fluid system (immiscible) is connected to a vacuum pump. The specific gravity values of the fluids (S1, S2) are given in the figure.
The gauge pressure value (in kN/m2, up to two decimal places) of 𝑝1 is
Ans: -9.0 – -8.0

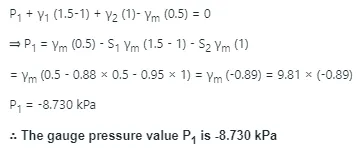

Sol:
Q. A three-fluid system (immiscible) is connected to a vacuum pump. The specific gravity values of the fluids (S1, S2) are given in the figure.
The gauge pressure value (in kN/m2, up to two decimal places) of 𝑝1 is
Ans: -9.0 – -8.0
Sol:
