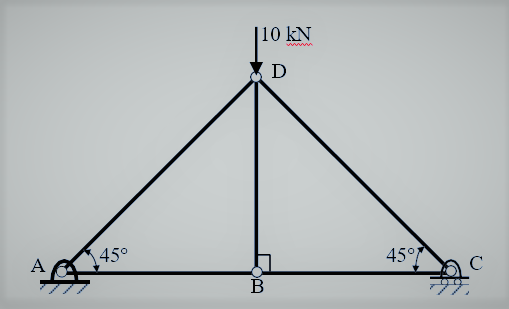

Q. A truss is composed of members AB, BC, CD, AD and BD, as shown in the figure. A vertical load of 10 kN is applied at point D. The magnitude of force (in kN) in the member BC is
Ans: 4.98 – 5.02

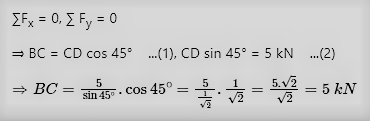

Sol:
So, magnitude of force (in kN) in member BC = 5 kN
