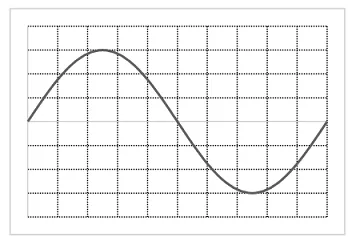

Q. A voltage of 6 cos(100πt) V is fed as y-input to a CRO. The waveform seen on the screen of the CRO is shown in the figure. The Y and X axes settings for the CRO are respectively
(A) 1 V/div and 1 ms/div (B) 1 V/div and 2 ms/div
(C) 2 V/div and 1 ms/div (D) 2 V/div and 2 ms/div
Ans: 2 V/div and 2 ms/div
