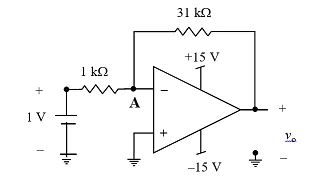

Q. An op-amp based circuit is implemented as shown below.
In the above circuit, assume the op-amp to be ideal. The voltage (in volts, correct to one decimal place) at node A, connected to the negative input of the op-amp as indicated in the figure is .
Ans: 0.4 – 0.6
