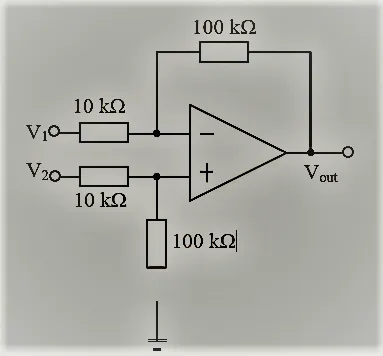

Q. In the circuit below, the operational amplifier is ideal. If V1 = 10 mV and V2 = 50 mV, the output voltage (Vout) is

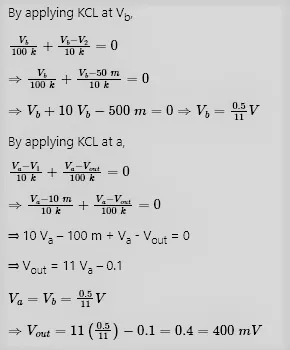

Solution:
Q. In the circuit below, the operational amplifier is ideal. If V1 = 10 mV and V2 = 50 mV, the output voltage (Vout) is
Solution:
