In the circuit shown below, a step input voltage of magnitude 5 V is applied at node A at time ๐ก = 0. If the capacitor has no charge for t ยฃ 0
August 30, 2023
4 Views

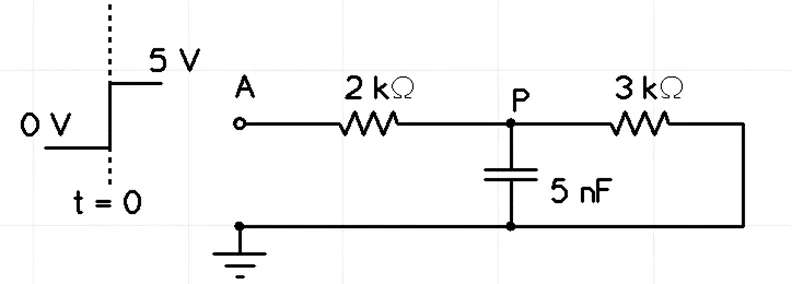

Q. In the circuit shown below, a step input voltage of magnitude 5 V is applied at node A at time ๐ก = 0. If the capacitor has no charge for t ยฃ 0 , the voltage at node P at ๐ก = 6 ๐s is_____________V. (Answer should be rounded off to two decimal places)
