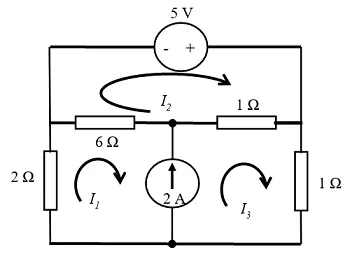

Q. In the given circuit, the mesh currents I1, I2 and I3 are
(A) I1 = 1 A, I2 = 2 A and I3 = 3 A (B) I1 = 2 A, I2 = 3 A and I3 = 4 A
(C) I1 = 3 A, I2 = 4 A and I3 = 5 A (D) I1 = 4 A, I2 = 5 A and I3 = 6 A
Ans: I1 = 1 A, I2 = 2 A and I3 = 3 Aย
