The inductance of a coil is measured using the bridge shown in the figure. Balance (D = 0) is obtained with C1

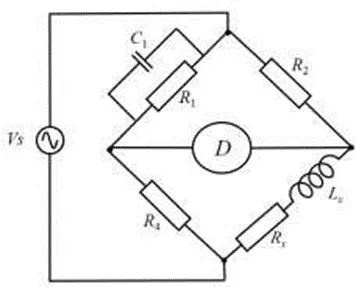

Q. The inductance of a coil is measured using the bridge shown in the figure. Balance (D = 0) is obtained with C1 = 1 nF, R1 = 2.2 MΩ, R2 = 22.2 kΩ, R4 = 10 kΩ. The value of the inductance Lx (in mH) is

Ans: 221 – 223
