The transfer function relating the input 𝑥(𝑡) to the output 𝑦(𝑡) of a system is given by G(s) = 1 (s + 3)

August 30, 2023

3 Views

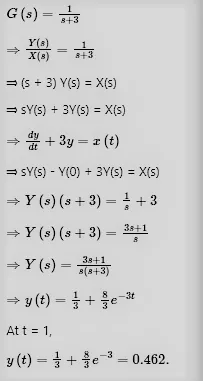

Q. The transfer function relating the input 𝑥(𝑡) to the output 𝑦(𝑡) of a system is given by G(s) = 1 (s + 3) . A unit-step input is applied to the system at time t = 0 . Assuming that 𝑦(0) = 3, the value of 𝑦(𝑡) at time 𝑡 = 1 is (Answer should be rounded off to two decimal places)

Ans: 0.46 – 0.48
